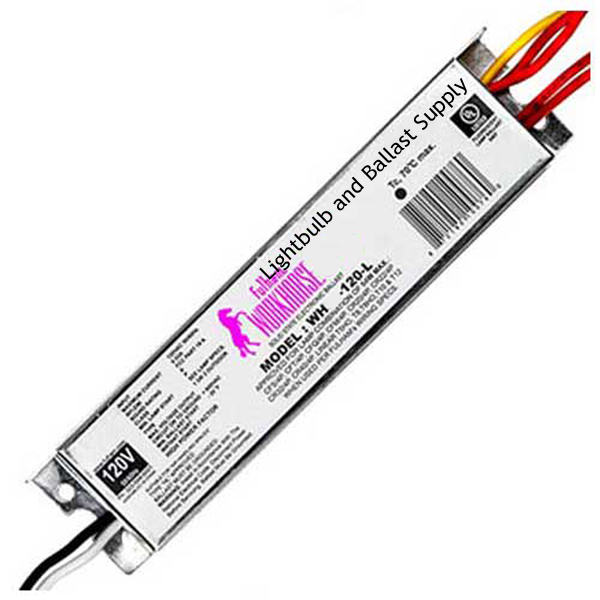

WH1-120L Workhorse Electronic Ballast – Fulham
Dimensions: 6″L x 1″W x .75″H
Max Power: 28w
Weight: 4.5oz
• Versatile
• Energy Saving
• High Power Factor
• Lightweight
• Small Case Size
• Solid-State Electronics
Workhorse Electronic Ballasts operate a wide variety of lamps,
in a variety of combinations, which makes them very useful for
anyone doing maintenance work or electrical repair work. One
Workhorse ballast can replace several other types of ballasts,
reducing inventory requirements. Workhorse ballasts are also
helpful for replacing old or discontinued ballasts. The small
size of the workhorse ballast also makes it ideal for fitting into
applications that other ballasts are too large for.
The below spec sheets contain all of the lamp types and
combinations as well as wiring diagrams for the workhorse
ballasts.
Spec Sheet and wiring diagram (PDF) here:
http://www.fulham.com/PDFs/Fulham_Lamp_Chart.pdf
Online Spec Sheet and wiring diagram Here:
https://issuu.com/fulham-company/docs/fulham_workhorse_wiring_diagrams?viewMode=doublePage&e=4528990/2607751
