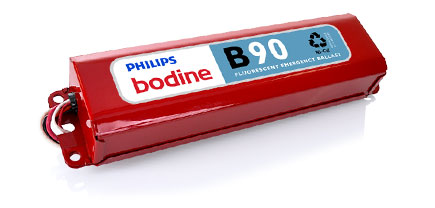

B90 Bodine Emergency Ballast

B90 Emergency Ballast
B90 Bodine
Philips Bodine

1-lamp operation only.

The B90 can be used with most 17 – 40 W (2’ – 4’) T8, T10, T12 or (4-pin) long compact

fluorescent lamps without an integral starter, including U-shaped, HO, VHO, circline and

energy-saving

This item usually ships in about 1 week.
please call to confirm lead time.

• Illumination Time
  90 Minutes
• Initial Light Output
  500 – 600 Lumens
• Full Warranty
  1 Year (NOT pro-rata)
• Voltage
  120/277 VAC, 60 Hz
• AC Input Current
  280 mA
• AC Input Power Rating
  3.5 Watts
• Test Switch
  Single Pole
• Battery
  High-Temperature, Maintenance-Free         Nickel-Cadmium Battery       7- to 10-Year Life Expectancy
• Battery Charging Current
  280 mA
• Recharge Time
  24 Hour
• Charging Indicator Light
  LED
• Temperature Rating (Ambient)
  Damp Location   0°C to +50°C   (32°F to 122°F)   Dry Location   0°C to +55°C   (32°F to 131°F)
• Dimensions
  9.4″ x 2.4″ x 1.5″   (238 mm x 60 mm x 38 mm)   Mounting Center 8.9″ (226 mm)
• Weight
  2.5 lbs. (1.13kg)
